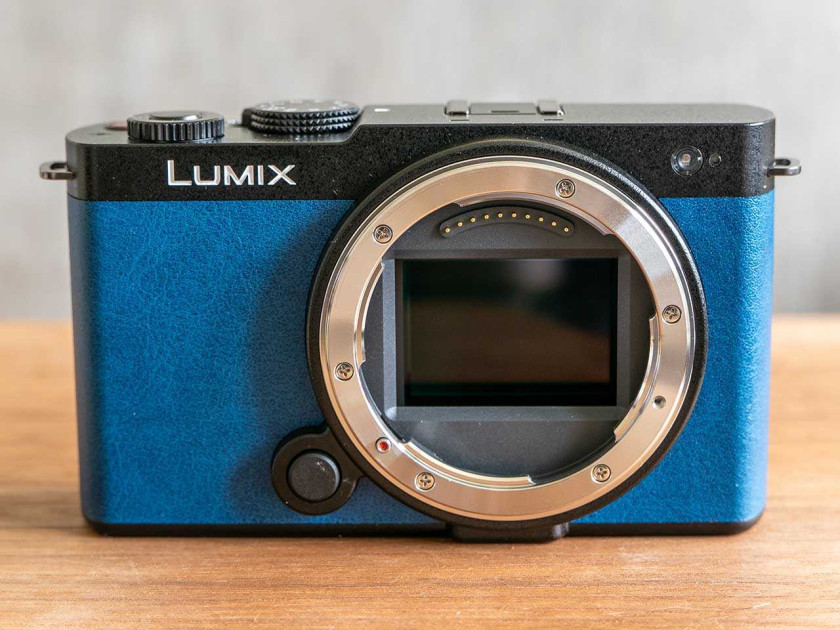

TYPE Type Digital Single Lens Mirrorless camera Lens mount L-Mount IMAGE SENSOR Type 35mm full-frame (35.6mm x 23.8mm) CMOS sensor Camera effective pixels / Total pixels Approx. 24.20 megapixels / Approx. 25.30 megapixels AR (Anti Reflection) coating Yes Aspect ratio / Color filter 3:2 / Primary color filter Dust reduction system Image sensor shift type LATITUDE 14+ stops (V-Log) STILL IMAGE Recording file format JPEG (DCF, Exif 3.0), RAW Aspect ratio 4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1 File size (Pixels) When using full-frame lenses 3:2 6000×4000(L) / 4272×2848(M) / 3024×2016(S) / 1920×1280(XS) / 12000×8000(XL)* / 8496×5664(LL)* *High Resolution mode. 4:3 5328×4000(L) / 3792×2848(M) / 2688×2016(S) / 1712×1280(XS) / 10656×8000(XL)* / 7552×5664(LL)* *High Resolution mode. 16:9 6000×3368(L) / 4272×2400(M) / 3024×1704(S) / 1920×1080(XS) / 12000×6736(XL)* / 8496×4784(LL)* *High Resolution mode. 1:1 4000×4000(L) / 2848×2848(M) / 2016×2016(S) / 1280×1280(XS) / 8000×8000(XL)* / 5664×5664(LL)* *High Resolution mode. 65:24 6000×2208(L) 2:1 6000×3000(L) When using APS-C lenses 3:2 3984×2656(L) / 2880×1920(M) / 2064×1376(S) / 1920×1280(XS) 4:3 3536×2656(L) / 2560×1920(M) / 1840×1376(S) / 1712×1280(XS) 16:9 3984×2240(L) / 2880×1624(M) / 2064×1160(S) / 1920×1080(XS) 1:1 2656×2656(L) / 1920×1920(M) / 1376×1376(S) / 1280×1280(XS) Image quality RAW / RAW+Fine / RAW+Standard / Fine / Standard (High Resolution mode: Combined / RAW / RAW+Fine / Fine) Color space sRGB, AdobeRGB MOTION PICTURE Recording file format MOV: H.264/MPEG-4 AVC, H.265/HEVC
MP4: H.264/MPEG-4 AVC, H.265/HEVC
MP4(Lite): H.265/HEVC Audio format MOV: LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*)
MP4: AAC (2ch 48kHz/16-bit)
MP4(Lite): AAC (2ch 48kHz/16-bit)
*When attaching Φ3.5mm microphone. System frequency 59.94Hz / 50.00Hz / 24.00Hz Image area of video Full / APS-C / PIXEL/PIXEL MOV (*1)

*HLG is selectable.

59.94Hz FULL [6K] 5952×3968 (3:2) 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [6K] 5952×3136 (17:9) 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [5.9K] 5888×3312 (16:9) 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [C4K] 4096×2160 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [4K] 3840×2160 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [FHD] 1920×1080 119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) APS-C / PIXEL/PIXEL [C4K] 4096×2160 59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [4K] 3840×2160 59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [3.3K] 3328×2496 (4:3) 47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [FHD] 1920×1080 119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*When Image Area of Video is set to APS-C. 50.00Hz FULL [6K] 5952×3968 (3:2) 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [6K] 5952×3136 (17:9) 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [5.9K] 5888×3312 (16:9) 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [C4K] 4096×2160 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [4K] 3840×2160 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [FHD] 1920×1080 100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) APS-C / PIXEL/PIXEL [C4K] 4096×2160 50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [4K] 3840×2160 50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [3.3K] 3328×2496 (4:3) 50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [FHD] 1920×1080 100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*When Image Area of Video is set to APS-C. 24.00Hz FULL [6K] 5952×3968 (3:2) 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [6K] 5952×3136 (17:9) 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [5.9K] 5888×3312 (16:9) 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [C4K] 4096×2160 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [4K] 3840×2160 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [FHD] 1920×1080 48.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) APS-C / PIXEL/PIXEL [C4K] 4096×2160 48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [4K] 3840×2160 48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [3.3K] 3328×2496 (4:3) 48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [FHD] 1920×1080 48.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) MP4(Lite) (*1) 59.94Hz FULL [3.8K] 3840×2560 (3:2) 29.97p, 50Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. APS-C / PIXEL/PIXEL [3.8K] 3840×2560 (3:2) 29.97p, 50Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. 50.00Hz FULL [3.8K] 3840×2560 (3:2) 29.97p, 50Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. APS-C / PIXEL/PIXEL [3.8K] 3840×2560 (3:2) 29.97p, 50Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. 24.00Hz FULL – APS-C / PIXEL/PIXEL – MP4 (*1) 59.94Hz FULL [4K] 3840×2160 29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) [FHD] 1920×1080 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) APS-C / PIXEL/PIXEL [4K] 3840×2160 59.94p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) [FHD] 1920×1080 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 50.00Hz FULL [4K] 3840×2160 25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) [FHD] 1920×1080 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) APS-C / PIXEL/PIXEL [4K] 3840×2160 50.00p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) [FHD] 1920×1080 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 24.00Hz FULL – APS-C / PIXEL/PIXEL – SLOW & QUICK MOV (*1) 59.94Hz FULL [FHD] 1920×1080 59.94p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*The focus mode switches to MF if you select a frame rate with a number of frames 150 or more.
*Angle of view narrows if you select a frame rate with a number of frames 180. APS-C [C4K] 4096×2160 29.97p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [4K] 3840×2160 29.97p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [FHD] 1920×1080 59.94p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*The focus mode switches to MF if you select a frame rate with a number of frames 150 or more.
*Angle of view narrows if you select a frame rate with a number of frames 180. 50.00Hz FULL [FHD] 1920×1080 50.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
25.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*The focus mode switches to MF if you select a frame rate with a number of frames 150 or more.
*Angle of view narrows if you select a frame rate with a number of frames 180. APS-C [C4K] 4096×2160 25.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [4K] 3840×2160 25.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [FHD] 1920×1080 50.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
25.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*The focus mode switches to MF if you select a frame rate with a number of frames 150 or more.
*Angle of view narrows if you select a frame rate with a number of frames 180. 24.00Hz FULL [FHD] 1920×1080 24.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*The focus mode switches to MF if you select a frame rate with a number of frames 150 or more.
*Angle of view narrows if you select a frame rate with a number of frames 180. APS-C [C4K] 4096×2160 24.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [4K] 3840×2160 24.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [FHD] 1920×1080 24.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*The focus mode switches to MF if you select a frame rate with a number of frames 150 or more.
*Angle of view narrows if you select a frame rate with a number of frames 180. VIEWFINDER – REAR MONITOR Type TFT LCD monitor with static touch control Monitor size Free-angle, 3.0-inch (7.6cm), 3:2 aspect Pixels Approx. 1.84 million dots Field of view Approx. 100% STATUS LCD – FOCUS (*2) Type Phase Detection AF system / Contrast AF system DFD technology Yes Focus mode AFS (Single) / AFC (Continuous) / MF AF mode Tracking / Full Area AF / Zone (Horizontal/Vertical) / Zone / 1-Area+ / 1-Area / Pinpoint
*Automatic Detection can be turned ON to switch between Human / Animal / Car / Motorcycle. Except when Pinpoint is set. AF detective range EV -6 – 18 (F1.4, ISO100 equivalent, AFS) AF custom setting AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction AF assist light Yes AF lock Set the Fn button in custom menu to AF lock Focus ring control Nonlinear / Linear (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum) Others AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus Limiter, Focus Peaking, 1-Area AF Moving Speed, AF Micro Adjustment, Continuous AF (during motion picture recording), Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, AF-Point Scope, Shutter AF, Half Press Shutter, Quick AF, Loop Focus Frame, Enlarged Live Display (Video), Touch Shutter, Touch AF/AE Function, Lens Focus Resume EXPOSURE CONTROL Light metering system 1,728-zone multi-pattern sensing system Light metering mode Multiple / Center Weighted / Spot / Highlight Weighted Metering range EV0-18 (F2.0 lens, ISO100 equivalent) Mode dial Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Creative Video (P/A/S/M)* / Slow&Quick / Custom 1, 2, 3 / Intelligent Auto
*The same exposure operations as P/A/S/M mode is available. Exposure compensation 1/3 EV step ±5EV (±3EV for motion picture) ISO sensitivity (Standard output sensitivity) [Normal]
Auto / 50* / 100-51200 / 102400* / 204800* (1/3 or 1 EV step) *Extended ISO

[V-Log]
Auto / 320* / 640-51200 (1/3 or 1 EV step) *Extended ISO

[HLG] (Video)
Auto / 400-51200 / 102400* / 204800* (1/3 or 1 EV step) *Extended ISO

Dual Native ISO [Normal]
Auto (Base ISO 100 / 640): Auto / 50* / 100-51200 / 102400* / 204800* *Extended ISO
Low (Base ISO 100): Auto / 50* / 100-800 *Extended ISO
High (Base ISO 640): Auto / 320* / 640-51200 / 102400* / 204800* *Extended ISO

[V-Log]
Auto (Base ISO 640 / 4000): Auto / 320* / 640-51200 *Extended ISO
Low (Base ISO 640): Auto / 320* / 640-5000 *Extended ISO
High (Base 4000): Auto / 2000* / 4000-51200 *Extended ISO

[HLG]
Auto (Base ISO 400 / 2500): Auto / 400-51200 / 102400* / 204800* *Extended ISO
Low (Base ISO 400): Auto / 400-3200
High (Base ISO 2500): Auto / 2500-51200 / 102400* / 204800* *Extended ISO

[Cinelike D2 / Cinelike V2]
Auto (Base ISO 200 / 1250): Auto / 100* / 200-51200 / 102400* / 204800* *Extended ISO
Low (Base ISO 200): Auto /100* / 200-1600 *Extended ISO
High (Base ISO 1250): Auto / 640* / 1250-51200 / 102400* / 204800* *Extended ISO

Synchro scan Still image / Motion picture AE lock Set the Fn button in custom menu to AE lock IMAGE STABILIZATION SYSTEM B.I.S. (5-axis / 5-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm when S-R2060 is used.]
Dual I.S. 2 (6.5-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used.] WHITE BALANCE White balance AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4 White balance adjustment Blue/Amber bias, Magenta/Green bias Color temperature setting 2500-10000K in 100K SHUTTER Type Electronic shutter Shutter speed Still image: Time* (Max. 60 sec**), 1/8,000 – 60**
Motion picture: 1/16,000 – 1/25
Creative Video M mode / MF mode: 1/16,000 – 1/2
*Bulb recording is available when using a Bluetooth remote control. **When the ISO setting exceeds 1600, the shutter speed will be reduced to less than 60 seconds. Self timer 10sec, 3 images / 2sec / 10sec / Custom Time Silent mode Yes BRACKET AE bracket 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst Aperture bracket 3, 5 or all positions Focus bracket Yes White balance bracket 3 images in blue/amber axis or in magenta/green axis, color temperature setting BURST SHOOTING Burst speed SH30: 30 frames/sec (AFS/AFC/MF)
SH30 PRE: 30 frames/sec (AFS/AFC/MF)
H: 9 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View)
M: 5 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View)
L: 2 frames/sec (AFS/AFC/MF) (with Live View) Number of recordable images H*: RAW+JPEG: More than 35 images, RAW: More than 55 images, JPEG: More than 120 images
M*: RAW+JPEG: More than 50 images, RAW: More than 200 images, JPEG: More than 200 images
L*: RAW+JPEG: More than 200 images, RAW: More than 200 images, JPEG: More than 200 images
SH: RAW / RAW+JPEG / JPEG: 36 images
*Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.
*When using a card with SD Speed Class with “UHS-II UHS Speed Class 3 (U3)”. FLASH – COLOR SETTINGS Photo Style Photo Style Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / LEICA Monochrome / Cinelike D2 / Cinelike V2 / Like709 / V-Log / REAL TIME LUT / Like2100 (HLG) / Like2100 (HLG) Full Range* / My Photo Style 1-4 (5-10)*
*Set to ON from Show/Hide Photo Style to select. Picture adjustment Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise Reduction / ISO / WB / LUT
*Adjustable settings vary depending on the Photo Style mode. Filter Expressive / Retro / Old Days / High Key / Low Key / Sepia / Cross Process / Bleach Bypass LUT Library Supported file types: .vlt, .cube
Vlog_709 / Set 1-39 (Set 1-3: Sample LUT)
*REAL TIME LUT in Photo Style, Apply LUT in Fn button, Apply LUT in RAW Processing, LUT View Assist in Log View Assist, LUT can be applied from these settings. ZOOM FUNCTION Hybrid zoom Still image / Motion picture Crop zoom Still image / Motion picture MOTION PICTURE FUNCTION Time lapse shot Yes Stop motion animation Yes Live cropping Yes (Supports cropping from 5.9K (FULL) 30p/25p/24p video to 4K/FHD sizes) SS/Gain operation Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB Luminance level 8-bit: 0-255 / 16-235 / 16-255
10-bit: 0‒1023 / 64‒940 / 64‒1023 Master pedestal level 31 steps Color bars / 1kHz test tone Yes (SMPTE / EBU / ARIB) / Yes LUT view assist Monitor / HDMI HLG view assist Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF) Anamorphic desqueeze display 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF Wave form monitor / Vectorscope Selectable Knee control Yes (in Like709 mode) Red REC frame indicator ON / OFF VERTICAL POSITION INFORMATION Still image / Motion picture (ON/OFF) LEVEL GAUGE Yes FUNCTION BUTTON REC Exposure Comp. / Dual Native ISO Setting / Sensitivity / White Balance / Photo Style / Apply LUT / REAL TIME LUT / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Color Shading Compensation / Filter Effect / One Push AE / Touch AE / AWB Lock / Exposure Mode / Synchro Scan (Photo) / Synchro Scan (Video) / Focus Mode / AF Mode / AF Detection Setting / Detecting Subject / AF Custom Setting (Photo) / AF Custom Setting (Video) / Focus Limiter / Focus Limiter Range Set / Focus Peaking / Focus Peaking Sensitivity / Focus Frame Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / AF-Point Scope / Focus Area Set / Enlarged Live Display (Video) / Drive Mode/ Drive Mode Setting / Bracketing / Silent Mode / Image Stabilizer / Hybrid Zoom (Photo) / Crop Zoom / Rec. File Format / Rec Quality / Rec Quality (My List) / Slow & Quick Setting / Time Code Display / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Quality / Sound Rec Level Limiter / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Hybrid Zoom (Video) / Crop Zoom / Focus Transition / Live Cropping / Live Cropping Settings / Q.MENU / Rec/Playback Switch / Video Record / Video Record (Creative Video) / Operation Lock / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / Monitor Disp. Set / Video-Priority Display / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select (LUT View Assist) / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control / AF Micro Adjustment / Lens Information / Wi-Fi / Save to Custom Mode / No Setting / Off (Disable Press and Hold) / Restore to Default PLAY Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Rec/Playback Switch / Video Record / Video Record (Creative Video) / Night Mode / Wi-Fi / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / No Setting / Off (Disable Press and Hold) / Restore to Default OSD LANGUAGE Please refer to “OSD” Sheet INTERFACE USB USB Type-C® (USB 10Gbps) HDMI (*3) HDMI HDMI TypeD
Audio: ON / OFF, MP4: 2ch, MOV: 2ch Monitor-through 4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)
4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].) Playback 59.94Hz: C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p* / 480p*
50.00Hz: C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p* / 576p*
24.00Hz: C4K/24p / 4K/24p / 1080p
*Only for playback. Remote input – Audio Build-in microphone Stereo
Wind Noise Canceller: OFF / Standard / High External microphone / External audio device input φ3.5mm for external microphone / external audio device
MIC (Plug-in Power) / MIC / LINE
Wind Cut: OFF / Low / Standard / High *When attaching 3.5mm microphone (sold separately).
Special Mic: Stereo / Shotgun *When attaching DMW-MS2 (sold separately). Speaker Monaural Headphone output – SD card slot SD Memory Card / SDHC Memory Card* / SDXC Memory Card*
*Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards. TC IN/OUT Count up Rec Run / Free Run Time code mode Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.) HDMI time code output ON / OFF WIRELESS Wi-Fi 2.4GHz bands (STA/AP) (IEEE802.11b/g/n)
5GHz bands (STA/AP) (IEEE 802.11a/n/ac)
Security: WPA/WPA2/WPA3
Please refer to “Wi-Fi” Sheet Bluetooth Bluetooth® v5.0 (Bluetooth Low Energy (BLE)) POWER Battery Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)
USB power supply, USB power charging Battery life (CIPA standard) Approx. 470 images with S-R2060
Approx. 430 images with S-R28200
*Under the test conditions specified by Panasonic based on CIPA standard. Continuous recordable time (Motion picture) (*1) MP4 [4K/60p]: Approx. 100 min (APS-C), MP4 [FHD/30p]: Approx. 120 min (FULL) *When using S-R2060 / S-R28200. When the battery is fully charged. Actual recordable time (Motion picture) (*1) MP4 [4K/60p]: Approx. 50 min (APS-C), MP4 [FHD/30p]: Approx. 60 min (FULL) *When using S-R2060 / S-R28200. When the battery is fully charged. DIMENSIONS / WEIGHT Dimensions (W x H x D) Approx. 126 x 73.9 x 46.7 mm / 4.96 x 2.91 x 1.84 inch (Body only, excluding protrusions)
Approx. 126 x 73.9 x 133.9 mm / 4.96 x 2.91 x 5.28 inch (with S-R2060, excluding protrusions)
Approx. 126 x 73.9 x 140.1 mm / 4.96 x 2.91 x 5.52 inch (with S-R28200, excluding protrusions) Weight Approx. 486g / 1.08 lb (Body, Shoe Cover, Battery, SD Memory Card) (excluding body cap)
Approx. 403g / 0.89 lb (Body, Shoe Cover) (excluding body cap) OPERATING ENVIRONMENT Operating temperature 0℃ to 40℃ (32℉ to 104℉) Operating humidity 10%RH to 80%RH STANDARD ACCESSORIES Software Recording LUMIX Lab / LUMIX Sync
・This software is used to control a Panasonic digital camera from a smartphone. Check the site below to download and install the software.
(For Android™ / iOS)

LUMIX Tether
・This software is used to control a Panasonic digital camera from a computer. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
(For Windows / Mac)

Playback / Editing ・The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory’s website using computer connected to the Internet.
(For Windows / Mac) Standard accessories DC-S9 Kit
Body Cap, Shoe Cover, Shoulder Strap, Battery Pack

DC-S9K Kit / DC-S9H Kit
Body Cap, Shoe Cover, Shoulder Strap, Battery Pack, Lens Cap, Lens Hood, Lens Rear Cap

・The Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.

(*1) About motion picture recording

– The cards that can be used for recording vary depending on the motion pictures bit rate and format type.
Motion pictures with 72Mbps or less: SD memory card with SD Speed Class with Class 10 or Video Speed Class 10 or higher
Motion pictures with 200Mbps or less: SD memory card with UHS-I / UHS-II UHS Speed Class 3 (U3) or Video Speed Class 30 or higher

– Recording stops when the continuous recording time exceeds 10 minutes in [6K] [5.9K].
– Recording stops when the continuous recording time exceeds 15 minutes in [C4K] [4K] [3.8K] [3.3K].
– Recording stops when the continuous recording time exceeds 20 minutes in [FHD].

– A new file will be created to continue recording if the file size exceeds the following conditions.
[MP4] in [FHD]: 4GB
[MP4] in [4K]: 96GB
[MOV]: 192GB

(*2) About AF
– Automatic Detection is not available for High Frame Rate video shooting above 60p (100p or 120p).
– Tracking and Automatic Detection are not available when using HDMI cable or USB connection cable for High Frame Rate video shooting (100p or 120p) above 60p.

(*3) To output motion pictures with 4K or higher, use a Premium High Speed HDMI cable (Type A – Type A plug).



Credit : Source Post

SS Author
We will be happy to hear your thoughts

Leave a reply

Siliconsavy.com
Logo
Shopping cart
